Sunken Slab - An In Depth Guide

Construction Software

In the construction world, the Sunken Slab defines precision and innovation. This unique structural element is integral in designing spaces that are not only aesthetically pleasing but also functionally efficient.

In this blog, we will delve deeper into the realms of the Sunken Slab and will provide you with essential information related to it.

Also Read : How To Make Steel Calculation In Slab

What is a Sunken Slab?

Let's start by telling you what a Sunken Slab is.

A sunken Slab is used to hide the pipes and drainage system from the human eye to give an appealing and aesthetic look to the house.

Sunken Slabs are placed 30 cm below the conventional floor and are filled with light construction leftovers like coal, sand, and gravel. The lightweight leftovers protect the drainage pipes and are easy to remove in case something needs to be checked.

Another use of a Sunken Slab is to create a depression or lowered area floor, this is typically done to add depth to your living space or to provide a unique aesthetic appeal.


Sunken Slab Section

To implement a Sunken Slab it is important to first understand the Sunken Slab cross-section.

A Sunken Slab section consists of multiple layers. Usually, there are 4 layers, starting from the top rests the finished floor, below it is a concrete slab, and supporting the concrete slab with two layers: the sub-base and subgrade.

Each layer serves a purpose and provides strength and durability to the slab.

Sunken Slab Detail

There are a lot of Sunken Slab details that need to be taken into consideration while constructing a Sunken Slab.

A Sunken Slab must have equal load distribution, the material should be tough yet flexible and it should look appealing.

The Sunken Slab details are planned by the engineers along with the architects to ensure that the Sunken Slab aligns with the overall design intent while meeting structural requirements.

Sunken Slab Depth

The Sunken Slab’s depth is an important parameter. The depth of a Sunken Slab depends upon its usage and the design concept. The depth is not just influenced by the functionality but is also influenced by the structural integrity.

The general depth of a Sunken Slab ranges from a few inches to a foot. The engineers carefully calculate the required depth of the Sunken Slab to ensure that it meets the design requirements without compromising safety.

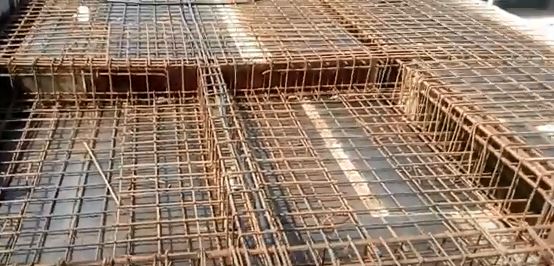

Sunken Slab Reinforcement Details.

The reinforcement of the Sunken Slab plays an important role in its functionality and strength. Hence it is important to know the Sunken Slab reinforcement details.

The steel bars or mesh are strategically placed within the concrete, this reinforcement makes the concrete flexible and increases the durability of the structure.

Plus there are many other factors like anticipated load, design, etc which engineers take into consideration while reinforcing Sunken Slab.

Parting Words

This is all you need to know about Sunken Slab. it sure is an essential element in the construction industry.

Sunken Slab plays an important role in aesthetics, and the durability of a building, and hence it is important to get it done by professionals.
